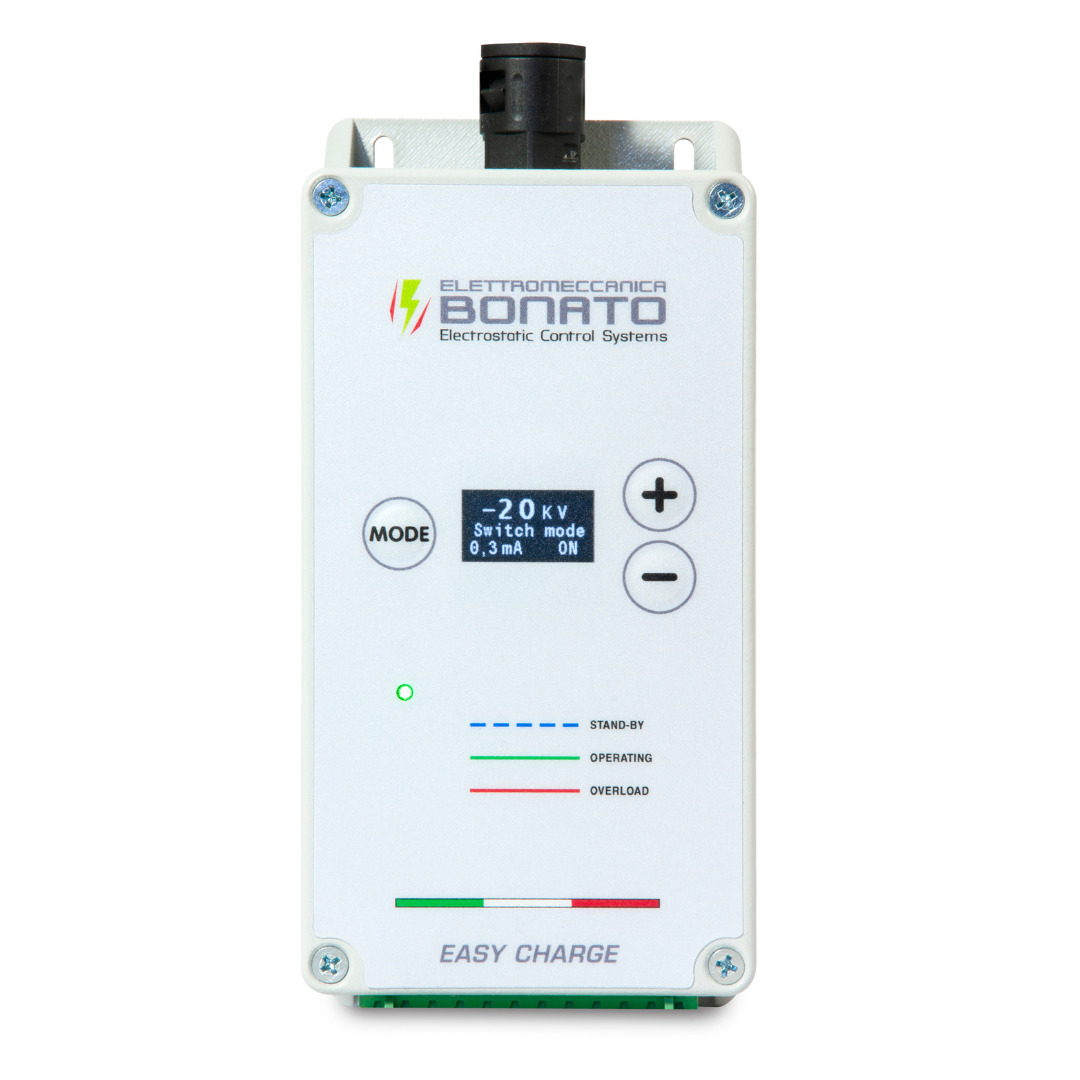

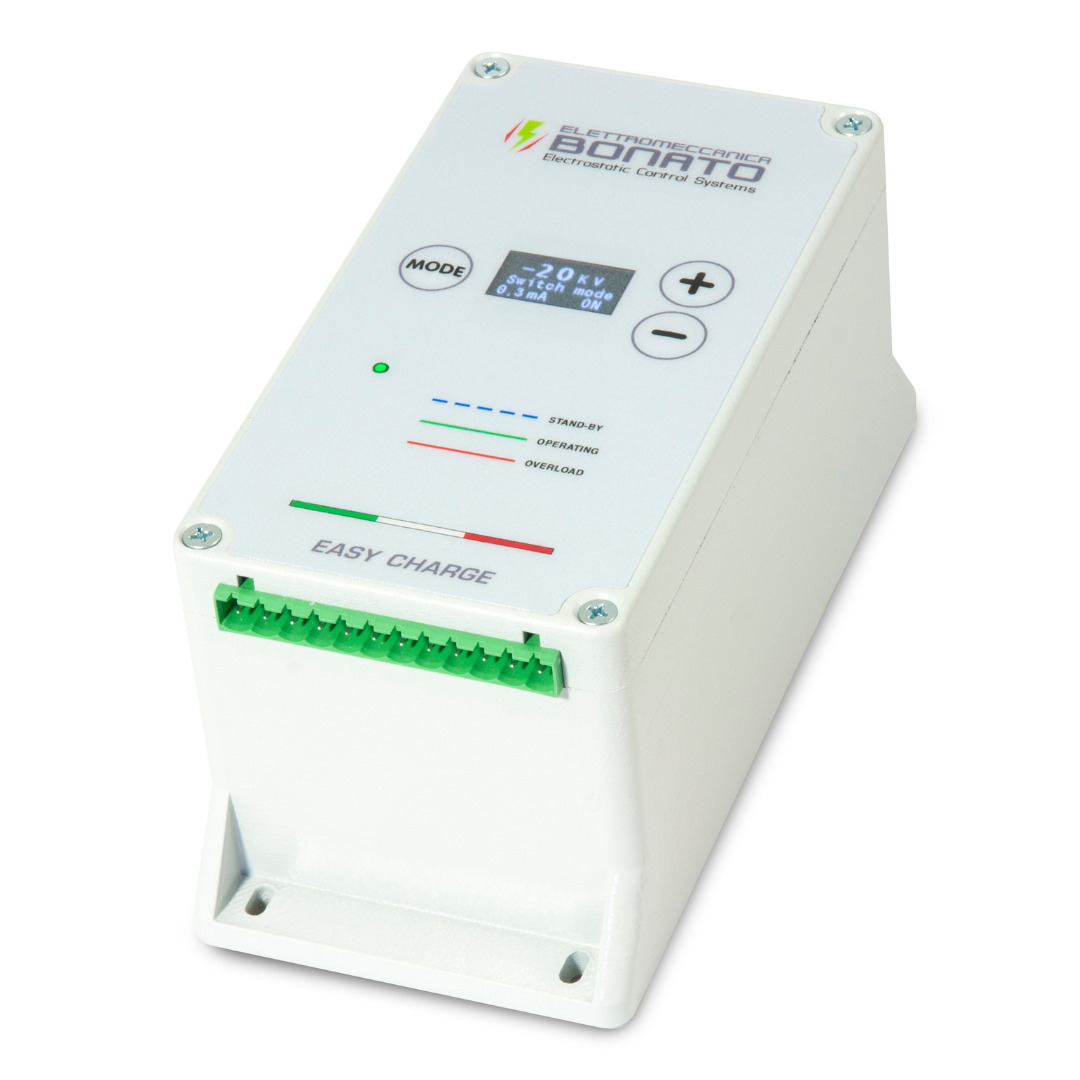

“Easy Charge” charging generator
20 kV, 24 Vdc
positive or negative polarity
display with buttons
The Easy Charge charging generator produces adjustable high voltage between 0 and 20 kV and current between 0 and 1.0 mA. Its intuitive controls are easy to use, featuring an OLED display that shows instantaneous voltage, current, and operating mode. Furthermore, the generator can be remotely controlled via an analog function. It is available with positive or negative polarity upon request and features two high-voltage outputs.
Data sheet
Additional information
| Material | ABS |
|---|---|
| Weight | |
| Connections | 2 |
| Display | OLED |
| Operating temperature | 0-60°C |
| Primary voltage | 24V DC, 1.5 A max. |
| Consumption | 30 W max |
| Secondary output | 0 – 20 kV DC |
| Secondary current | 0 – 1 mA |
| Polarity | Positive or negative |
| Features | Voltage and current control, overload indicator. Analog remote control function, control keypad |
