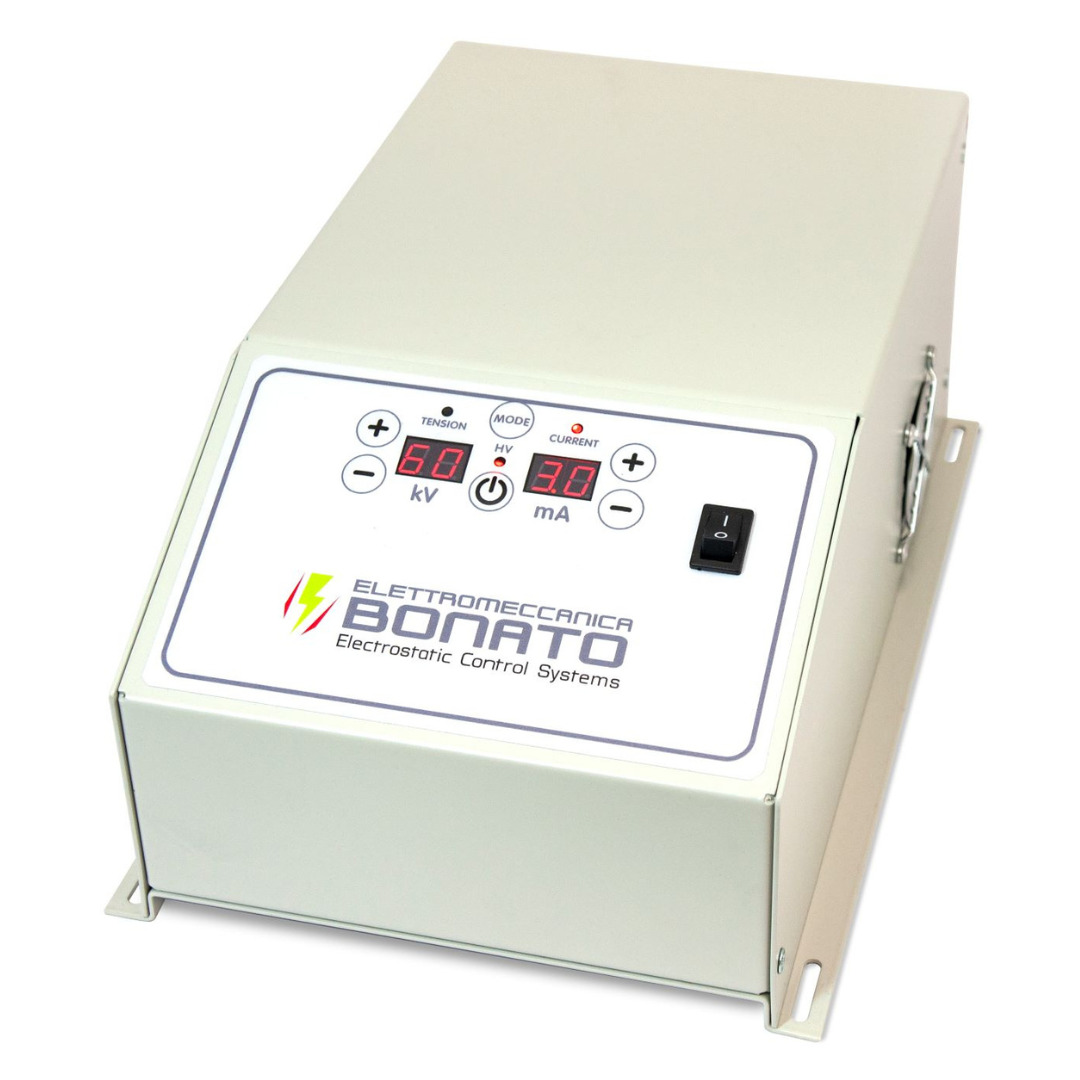

“ECG-60” charging generator
60 kV, 230 VAC
positive or negative polarity
adjustment buttons
The ECG60 charging generator produces an adjustable high voltage between 5 and 60 kV with a maximum current of 3.0 mA; it can operate in constant voltage or constant current mode. Its controls are highly intuitive and easy for the operator to use. Furthermore, the generator can be controlled remotely via the analog remote control function, can have positive or negative charge, and features 2 high-voltage outputs.
Data sheet
Additional information
| Material | Powder-coated steel |
|---|---|
| Weight | |
| Connections | 2 |
| Voltage reading | Digital display |
| Operating temperature | 0-60°C |
| Primary voltage | 24V DC/90-264 V AC 47/63 Hz |
| Consumption | 200 W max |
| Secondary output | 5 – 60 kV DC |
| Secondary current | 0 – 3 mA |
| Polarity | Positive or negative |
| Features | Voltage and current control, overload display. Analog remote control function, keyboard controls |
