“IH-4-AN” Ionizing Head
with air nozzle
working distance
up to 1500 mm
shockless

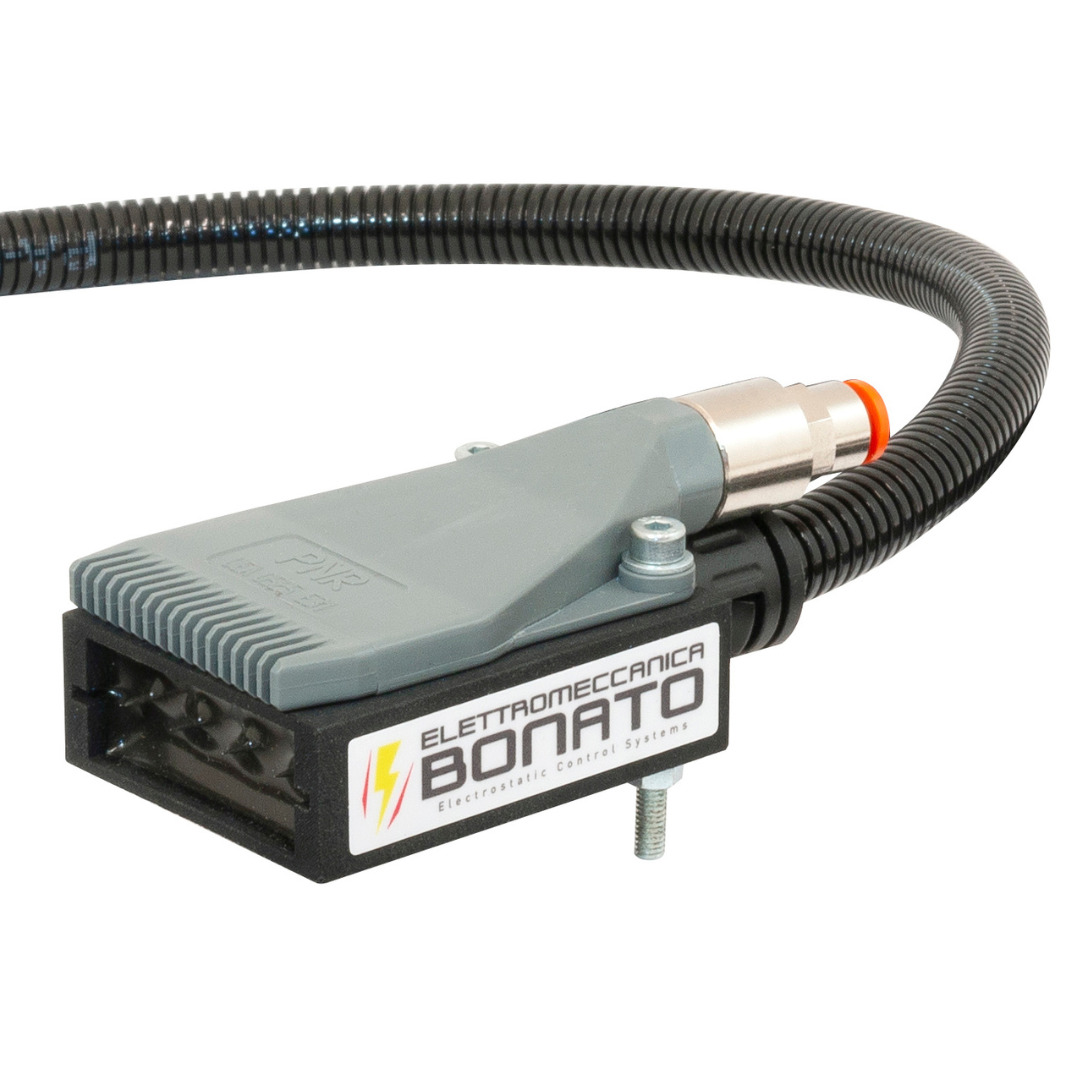

The IH-4-AN antistatic nozzle consists of an air nozzle with a small antistatic bar. The ionizing pins are shock-proof. When compressed air exits the nozzle, it picks up the ions and carries them directly onto the surface of the product to be ionized. The combination of ionizing pins and the nozzle ensures high electrostatic charge removal at a low level.
The IH-4-FN nozzle is supplied with a high-voltage cable available in various lengths, which must be connected to the power supply.
Data sheet
Additional information
| Power supply | |
|---|---|
| Working distance | |
| Ambient temperature | |
| Operating voltage | |
| Pressure | Max 8 Bar |
| Compressed air consumption | Max 180 Nl/min (at 6 bar) |
| Noise | 71 dB at a distance of 30 cm, at 4 bar |
| High-voltage cable length | 3/5/10 m, other lengths on request |
