Ionizing Head “IH-4-FN”
with air knife
working distance
up to 1500 mm
shockless

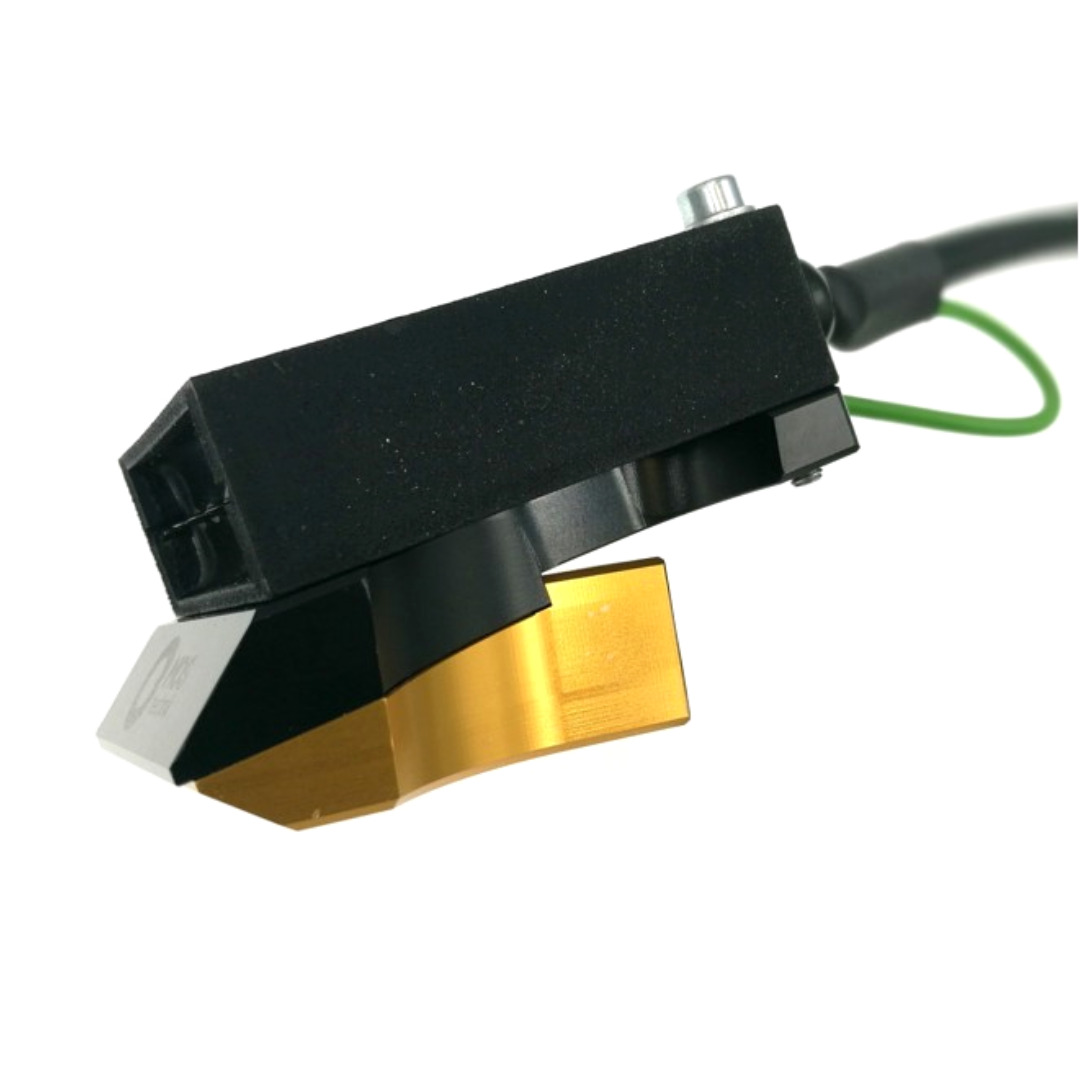

The IH-4-FN antistatic nozzle consists of a flat nozzle with a small antistatic bar. The ionizing pins are shock-proof. When compressed air exits through the thin slot of the flat nozzle, the air volume is amplified by the ambient air. This compressed air picks up the ions and carries them directly onto the product surface. The combination of ionizing pins and the flat nozzle ensures high electrostatic charge removal with very low noise levels and compressed air consumption.
The IH-4-FN nozzle is supplied with a high-voltage cable available in various lengths, which must be connected to the power supply.
Data sheet
Additional information
| Working distance | |
|---|---|
| Operating voltage | |
| Power supply | |
| Pressure | Max 8 Bar |
| Compressed air consumption | Max 500 Nl/min (at 6 bar) |
| Noise | 68 dB at a distance of 30 cm, at 4 bar |
| Ambient temperature | |
| High-voltage cable length | 3/5/10 m, other lengths on request |
