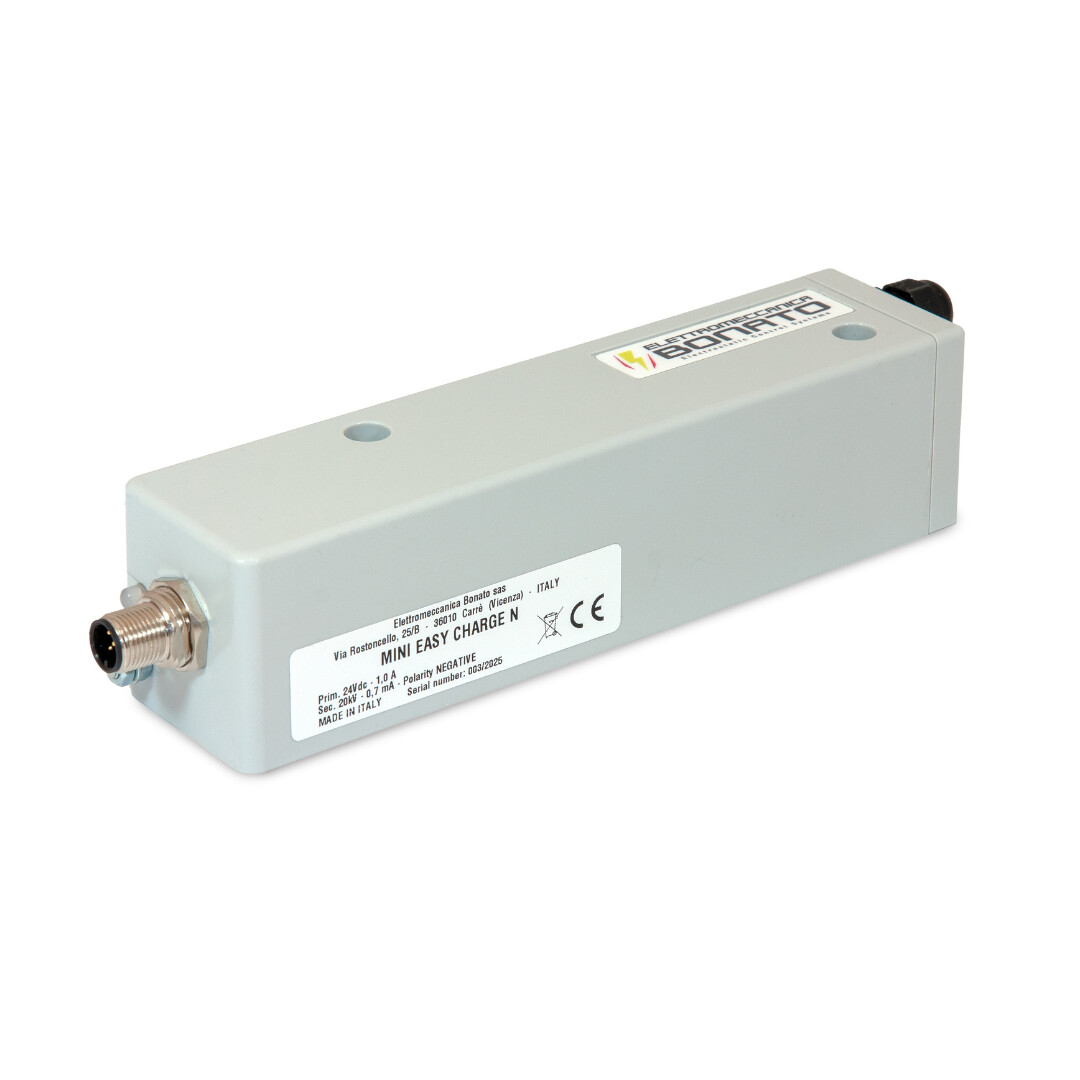

“Mini Easy Charge” charging generator
20 kV, 24 Vdc
positive or negative polarity
for IML printing
The Mini Easy Charge charging generator generates adjustable high voltage between 0 and 20 kV with a 0–20 mA signal. The generator can have positive or negative polarity upon request and features 2 high-voltage outputs. A 2 to 8-output splitter is available for snap-fit mounting on the high-voltage output.
Data sheet
Additional information
| Material | ABS |
|---|---|
| Weight | |
| Connections | 2 |
| Operating temperature | 0-60°C |
| Primary voltage | 24V DC, 1.5 A max. |
| Consumption | 30 W max |
| Secondary output | 0 – 20 kV DC |
| Secondary current | Max. 0.8 mA |
| Polarity | Positive or negative |
| Features | Voltage and current control, overload indicator, remote ON/OFF |
